How to Define Composition Relationships in Object Diagrams with PlantUML?

Composition relationship is modeled using the symbol *--



composition.txt

@startuml

title "Object Composition"

object "My:Brain" as brain

object "My:Frontal" as frontal
object "My:Parietal" as parietal
object "My:Temporal" as temporal
object "My:Occipital" as occipital

brain *-- frontal
brain *-- parietal
brain *-- temporal
brain *-- occipital

@enduml

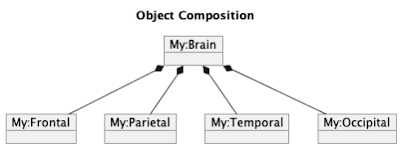

Above snippet generate below diagram.
