JavaFX: HBox Layout

HBox layout keep the children in a single horizontal row.



Can I control the alignment of the content?

Yes, you can control the alignment using 'javafx.geometry.Pos' enum. Default value is Pos.TOP_LEFT (Represents positioning on the top vertically and on the left horizontally).



What is the behavior, if HBox is resized than the preferred width?

If an hbox is resized larger than its preferred width, by default it will keep children to their preferred widths, leaving the extra space unused.



Find the following working example.



HBox class provides following constructors to get the instance.

public HBox(double spacing)

public HBox(Node... children)

public HBox(double spacing, Node... children)

spacing: specifies the amount of horizontal space between each child

children: specifies The initial set of children for this pane.



hboxDemo.fxml

<?import javafx.scene.*?>
<?import javafx.scene.shape.*?>
<?import javafx.scene.layout.*?>
<?import javafx.scene.text.*?>
<?import javafx.scene.effect.*?>

<HBox xmlns:fx="http://javafx.com/fxml" fx:controller="com.sample.app.layout.controller.HBoxController"
	fx:id="hBox1" spacing="20" alignment="center">

	<Rectangle fx:id="rectangle1"
		fill="salmon"
		width="150" height="100"
	 />


	<Circle fx:id="circle1"
		radius="50"
		fill="green"/>

	<Ellipse fx:id="ellipse1"
		radiusX ="100" radiusY="50"
		fill="yellow"/>

</HBox>



HBoxController.java

package com.sample.app.layout.controller;

import java.net.URL;
import java.util.ResourceBundle;

import javafx.fxml.FXML;
import javafx.fxml.Initializable;
import javafx.scene.effect.DropShadow;
import javafx.scene.layout.HBox;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.scene.shape.Ellipse;
import javafx.scene.shape.Rectangle;

public class HBoxController implements Initializable {

	@FXML
	private Circle circle1;

	@FXML
	private Rectangle rectangle1;

	@FXML
	private Ellipse ellipse1;

	@FXML
	private HBox hBox1;

	@Override
	public void initialize(URL location, ResourceBundle resources) {
		DropShadow dropShadow = new DropShadow();
		dropShadow.setOffsetX(5);
		dropShadow.setOffsetY(5);
		dropShadow.setColor(Color.GRAY);

		hBox1.setEffect(dropShadow);
	}

}



HBoxDemo.java

package com.sample.app.layout;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

public class HBoxDemo extends Application {

	private static final String FXML_FILE = "/hboxDemo.fxml";
	private static final String STAGE_TITLE = "HBox demo";

	public static void main(String args[]) {
		launch(args);

	}

	@Override
	public void start(Stage primaryStage) throws Exception {

		Parent root = (Parent) FXMLLoader.load(this.getClass().getResource(FXML_FILE));

		Scene scene = new Scene(root, 600, 400, Color.LIGHTGRAY);

		primaryStage.setTitle(STAGE_TITLE);
		primaryStage.setScene(scene);
		primaryStage.show();
	}

}

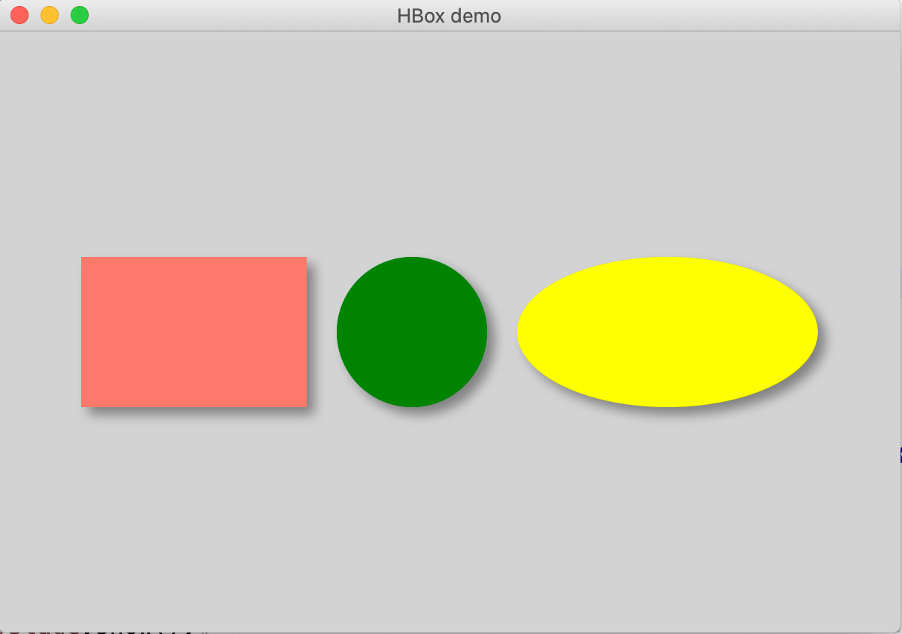

Output
