PlantUML: hide classes, interfaces, enums in a class diagram

‘hide entityName’ command hide the classes, interface, enums in a class diagram.



hideClasses.txt

@startuml

interface Interface1
interface Interface2

class Class1
class Class2

abstract class AbstractClass1
abstract class AbstractClass2

enum Enum1
enum Enum2

hide Interface2
hide Class1
hide AbstractClass1
hide Enum2

@enduml

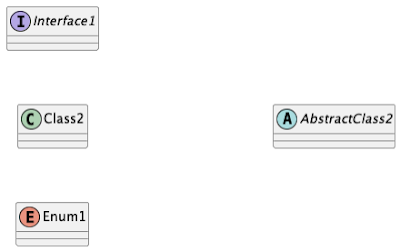

Above snippet generate below diagram.
