PlantUML: how to use dotted arrow in the sequence diagram?

Using -->, we can draw a dotted arrow to connect the entities.



dottedArrow.txt

@startuml
Client --> LoginServer: Enter user name
Client --> LoginServer: Enter password
Client --> LoginServer: Submit the form
LoginServer --> ADServer: Check the credentials
ADServer --> LoginServer: Login Successful
LoginServer --> Client: Login Successful
@enduml

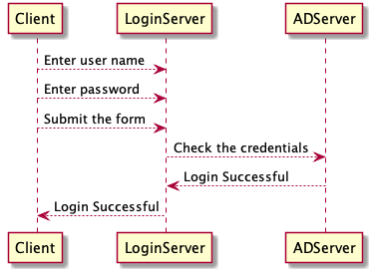

Above snippet generate following diagram.
