PlantUML: Add header and footer to a diagram

‘header’, ‘footer’ keywords attach header and footer to a diagram.



headerFooter.txt

@startuml

title "Login successful flow"
header "User login"
footer %page% of %lastpage%

Client -> LoginServer: Enter user name
Client -> LoginServer: Enter password
Client -> LoginServer: Submit the form
LoginServer -> ADServer: Check the credentials
ADServer -> LoginServer: Login Successful
LoginServer -> Client: Login Successful

@enduml

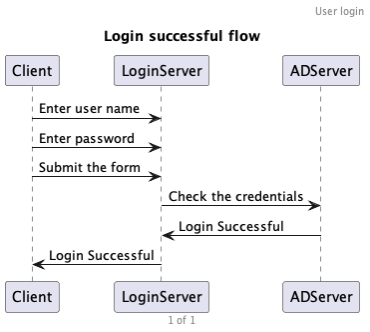

Above snippet generates below diagram.
