Spring data: ArangoDB: Create persistent index



CollectionOperations interface provides ‘ensurePersistentIndex’ method to create a persistent index. If a suitable persistent index exists, then /_api/simple/range and other operations will use this index to execute queries.



Signature

IndexEntity ensurePersistentIndex(Iterable<String> fields, PersistentIndexOptions options) throws DataAccessException;



‘PersistentIndexOptions’ is used to provide additional options which are used while creating the index. Below table summarizes all the possible options associated with PersistentIndexOptions object.



Option

Data type

Description

inBackground

Boolean

create the the index in the background

name

String

name of the index

fields

Iterable<String>

list of attribute paths like a, a.b, a.b.c etc.,

type

IndexType

IndexType is an enum and can be one of

a.   primary,

b.   hash,

c.    skiplist,

d.   persistent,

e.   geo,

f.     geo1,

g.   geo2,

h.   fulltext,

i.     edge,

j.     ttl

unique

Boolean

if true, then create a unique index

sparse

Boolean

if true, then create a sparse index



Example

PersistentIndexOptions persistentIndexOptions = new PersistentIndexOptions();
persistentIndexOptions.name("ageIndex");

empsCollection.ensurePersistentIndex(Arrays.asList("age"), persistentIndexOptions);



Find the below working application.



Step 1: Create new maven project ‘collection-operations-create-persistent-index’.



Step 2: Update pom.xml with maven dependencies.



pom.xml



<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.sample.app</groupId>
	<artifactId>collection-operations-create-persistent-index</artifactId>
	<version>1</version>

	<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-parent -->
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.4.5</version>
	</parent>


	<dependencies>
		<dependency>
			<groupId>com.arangodb</groupId>
			<artifactId>arangodb-spring-boot-starter</artifactId>
			<version>2.3.3.RELEASE</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>



Step 3: Define Employee entity.



Employee.java



package com.sample.app.entity;

import com.arangodb.springframework.annotation.ArangoId;
import com.arangodb.springframework.annotation.Document;
import org.springframework.data.annotation.Id;

@Document("employees")
public class Employee {

	@Id // db document field: _key
	private String key;

	@ArangoId // db document field: _id
	private String arangoId;

	private Integer id;
	private String firstName;
	private String lastName;
	private Integer age;
	private String aboutMe;

	public Employee(Integer id, String firstName, String lastName, Integer age, String aboutMe) {
		super();
		this.id = id;
		this.firstName = firstName;
		this.lastName = lastName;
		this.age = age;
		this.aboutMe = aboutMe;
	}

	public Employee() {

	}

	public String getKey() {
		return key;
	}

	public void setKey(String key) {
		this.key = key;
	}

	public String getArangoId() {
		return arangoId;
	}

	public void setArangoId(String arangoId) {
		this.arangoId = arangoId;
	}

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getFirstName() {
		return firstName;
	}

	public void setFirstName(String firstName) {
		this.firstName = firstName;
	}

	public String getLastName() {
		return lastName;
	}

	public void setLastName(String lastName) {
		this.lastName = lastName;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public String getAboutMe() {
		return aboutMe;
	}

	public void setAboutMe(String aboutMe) {
		this.aboutMe = aboutMe;
	}

	@Override
	public String toString() {
		return "Employee [key=" + key + ", arangoId=" + arangoId + ", id=" + id + ", firstName=" + firstName
				+ ", lastName=" + lastName + ", age=" + age + ", aboutMe=" + aboutMe + "]";
	}

}

Step 4: Define Arango db configuration class.



ArangoConfig.java

package com.sample.app.config;

import org.springframework.context.annotation.Configuration;

import com.arangodb.ArangoDB;
import com.arangodb.springframework.annotation.EnableArangoRepositories;
import com.arangodb.springframework.config.ArangoConfiguration;

@Configuration
@EnableArangoRepositories(basePackages = { "com.sample.app" })
public class ArangoConfig implements ArangoConfiguration {

	@Override
	public ArangoDB.Builder arango() {
		return new ArangoDB.Builder().host("localhost", 8529).user("root").password("tiger");
	}

	@Override
	public String database() {
		return "abc_org";
	}
}

Step 5: Define main application class.



App.java

package com.sample.app;

import java.util.Arrays;
import java.util.Collection;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import com.arangodb.entity.IndexEntity;
import com.arangodb.model.PersistentIndexOptions;
import com.arangodb.springframework.core.ArangoOperations;
import com.arangodb.springframework.core.CollectionOperations;
import com.sample.app.entity.Employee;

@SpringBootApplication
public class App {

	@Autowired
	private ArangoOperations arangoTemplate;

	public static void main(String args[]) {
		SpringApplication.run(App.class, args);
	}

	@Bean
	public CommandLineRunner demo() {

		return (args) -> {
			Employee emp1 = new Employee(1, "Krishna", "Gurram", 33, "Blogger, cricketer");
			Employee emp2 = new Employee(2, "Lahari", "G", 20, "I love trekking, singing and classical dancer");
			Employee emp3 = new Employee(3, "Thulasi", "G", 19, "Ethical hacker");

			arangoTemplate.insert(Arrays.asList(emp1, emp2, emp3), Employee.class);

			Iterable<Employee> empsIterable = arangoTemplate.findAll(Employee.class);

			System.out.println("Documents in employees collection");
			for (Employee emp : empsIterable) {
				System.out.println(emp);
			}

			CollectionOperations empsCollection = arangoTemplate.collection(Employee.class);

			PersistentIndexOptions persistentIndexOptions = new PersistentIndexOptions();
			persistentIndexOptions.name("ageIndex");

			empsCollection.ensurePersistentIndex(Arrays.asList("age"), persistentIndexOptions);

			Collection<IndexEntity> indexesCollection = empsCollection.getIndexes();

			System.out.println("\nTotal indexes : " + indexesCollection.size());

			for (IndexEntity indexEntity : indexesCollection) {
				System.out.println("\nindex details");
				System.out.println("name : " + indexEntity.getName());
				System.out.println("Index created on fields : " + indexEntity.getFields());
			}

			System.out.println("\nDropping the collection");

			empsCollection.drop();

		};
	}
}

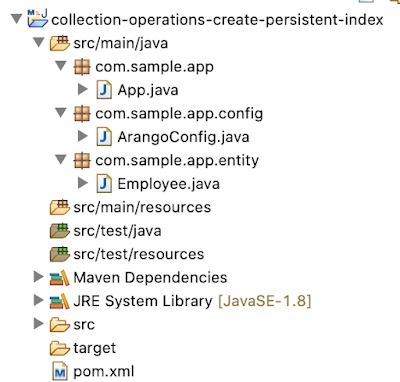

Total project structure looks like below.



Run App.java, you will see below messages in console.

Documents in employees collection
Employee [key=55939, arangoId=employees/55939, id=1, firstName=Krishna, lastName=Gurram, age=33, aboutMe=Blogger, cricketer]
Employee [key=55940, arangoId=employees/55940, id=2, firstName=Lahari, lastName=G, age=20, aboutMe=I love trekking, singing and classical dancer]
Employee [key=55941, arangoId=employees/55941, id=3, firstName=Thulasi, lastName=G, age=19, aboutMe=Ethical hacker]

Total indexes : 2

index details
name : primary
Index created on fields : [_key]

index details
name : ageIndex
Index created on fields : [age]

Dropping the collection

You can download complete working application from below link.

https://github.com/harikrishna553/springboot/tree/master/arangodb/collection-operations-create-persistent-index
