Swagger Editor: Reuse the snippet via components

OpenAPI specification provides a way to define the reusable components.

For example,

Step 1: Create a component that represent employee information.

components:
  schemas:
    employee:
      type: object
      properties:
        id:
          type: integer
          example: 123
        firstName:
          type: string
          example: krishna
        lastName:
          type: string
          example: gurram

Step 2: Refer the definition of employee component in the document.

$ref: '#/components/schemas/employee'

Note:

After typing $ref: enter CTRL + SPACE to get the auto complete help.

data.yaml

openapi: 3.0.0
info:
  title: Customer Data Aceess API
  description: API to expose all the CRUD operations on  customers
  contact:
    name: Krishna
    email: krishna123@abc.com
    url: https://self-learning-java-tutorial.blogspot.com/
  version: 1.0.0
paths:
  /employees/{employeeId}:
    get:
      parameters:
      - in: path
        name: employeeId
        required: true
        schema:
          type: integer
          example: 123
      responses:
        200:
          description: Get Specific Employee Details
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/employee'
  /employees:
      post:
        description: Add new employee to the organization
        requestBody:
          content:
            application/json:
              schema:
                type: object
                properties:
                  firstName:
                    type: string
                    example: krishna
                  lastName:
                    type: string
                    example: gurram
        responses:
          201:
            description: New Employee is created
            content:
              application/json:
                schema:
                  $ref: '#/components/schemas/employee'

      get:
        parameters:
          - in: query
            name: from
            description: Page number to return
            required: true
            schema:
              type: integer
              example: 1
          - in: query
            name: size
            description: Number of elements to return
            required: false
            schema:
              type: integer
              example: 10
              minimum: 10
              maximum: 100
          - in: header
            name: onetime_token
            description: token to be used at the time of login
            required: false
            schema:
              type: string
              example: 08c3372a-9314-49d6-b9dd-ff212c1715a5
        responses:
          200:
            description: List of all the employees in organization
            content:
               application/json:
                  schema:
                    type: array
                    items:
                      $ref: '#/components/schemas/employee'

components:
  schemas:
    employee:
      type: object
      properties:
        id:
          type: integer
          example: 1234
        firstName:
          type: string
          example: krishna
        lastName:
          type: string
          example: gurram

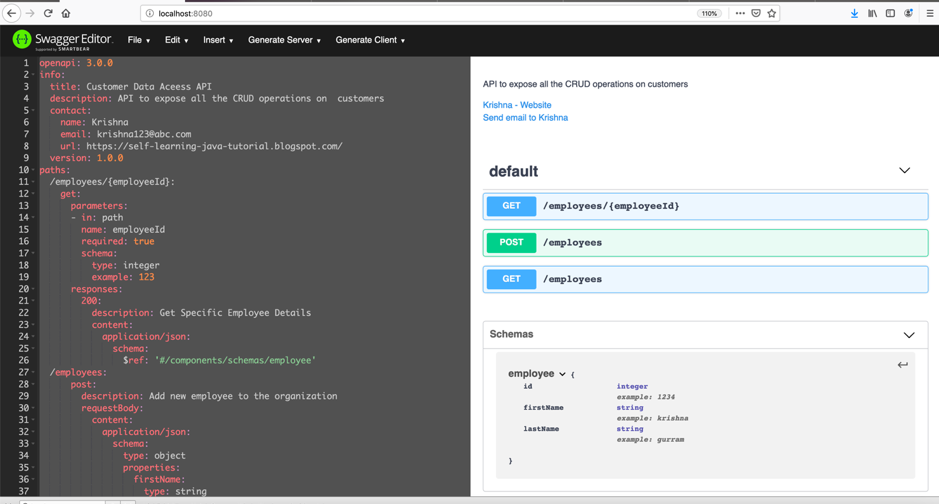

Add the content of data.yaml to swagger editor, you can see the API definitions at right side of window.
