JavaFX: Set behavior to toggle button

By adding ChangeListener to the ToggleGroup instance, we can set the behavior to toggle button.

Ex
         toggleGroup.selectedToggleProperty()
         .addListener((ObservableValue<? extends Toggle> ov, Toggle old_toggle, Toggle new_toggle) -> {
                  if (new_toggle == null)
                           rect.setFill(Color.WHITE);
                  else
                           rect.setFill((Color) toggleGroup.getSelectedToggle().getUserData());
         });

Find the below working application.

ToggleButtonApp.java
package com.sample.demos;

import java.io.FileNotFoundException;
import java.net.MalformedURLException;

import javafx.application.Application;
import javafx.beans.value.ObservableValue;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Toggle;
import javafx.scene.control.ToggleButton;
import javafx.scene.control.ToggleGroup;
import javafx.scene.layout.HBox;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.scene.shape.Rectangle;
import javafx.stage.Stage;

public class ToggleButtonApp extends Application {

 @Override
 public void start(Stage primaryStage) throws FileNotFoundException, MalformedURLException {
  ToggleGroup toggleGroup = new ToggleGroup();

  ToggleButton toggleButton1 = new ToggleButton("Red");
  toggleButton1.setUserData(Color.RED);

  ToggleButton toggleButton2 = new ToggleButton("Green");
  toggleButton2.setUserData(Color.GREEN);

  ToggleButton toggleButton3 = new ToggleButton("Blue");
  toggleButton3.setUserData(Color.BLUE);

  ToggleButton toggleButton4 = new ToggleButton("Aqua");
  toggleButton4.setUserData(Color.AQUA);

  toggleButton1.setToggleGroup(toggleGroup);
  toggleButton2.setToggleGroup(toggleGroup);
  toggleButton3.setToggleGroup(toggleGroup);
  toggleButton4.setToggleGroup(toggleGroup);

  Rectangle rect = new Rectangle();
  rect.setHeight(200);
  rect.setWidth(800);
  rect.setFill(Color.RED);
  rect.setStroke(Color.DARKGRAY);
  rect.setStrokeWidth(2);
  rect.setArcHeight(10);
  rect.setArcWidth(10);

  toggleGroup.selectedToggleProperty()
    .addListener((ObservableValue<? extends Toggle> ov, Toggle old_toggle, Toggle new_toggle) -> {
     if (new_toggle == null)
      rect.setFill(Color.WHITE);
     else
      rect.setFill((Color) toggleGroup.getSelectedToggle().getUserData());
    });

  HBox hbox = new HBox(toggleButton1, toggleButton2, toggleButton3, toggleButton4);
  VBox vbox = new VBox(hbox, rect);

  hbox.setAlignment(Pos.TOP_CENTER);

  Scene scene = new Scene(vbox, 800, 400);

  /* Set the scene to primaryStage, and call the show method */
  primaryStage.setTitle("JavaFX Toggle Button Example");
  primaryStage.setScene(scene);
  primaryStage.show();
 }

}

TestFX.java
package com.sample.demos;

import javafx.application.Application;

public class TestFX {
 public static void main(String args[]) {
  Application.launch(ToggleButtonApp.class, args);
 }
}

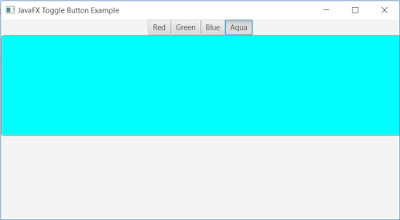

Depends on the selection of toggle button, rectangle color will change.
